HIGHLIGHT OF THE WEEK |
|
|
I still struggle with the flying bit, but
enjoy building and have often turned my nose up at ARTF (Almost Ready To
Frow). Even though my test pilot, Phil the Fridge, has always been the first to fly my models, I thought that the thrill of that first nerve tingling flight would be lessened by ARTF. Maybe one day, as my flying skill develops, ARTF will mean the same to me as it does to Phil "Any Ruddy Thing Flies"; thanks again for your help Phil. |
|
Anyway, back to the plot, I gave in and

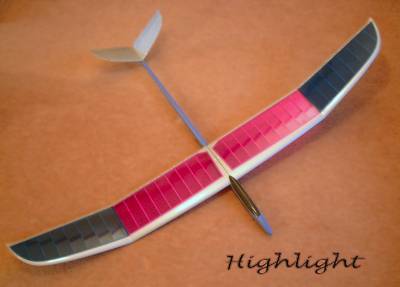

bought one, a Highlight. An ARTF 60" span HLG from West London
Models. Ordered Monday, Delivered Tuesday, Flyable Wednesday, Repairable
Thursday. Wings – Built up with balsa ribs and carbon ‘D’ box leading edge (which will easily snap bonnet stays Phil). The dihedral tipped wing halves are pre drilled for the supplied carbon joiner and rear retaining screws. Location in fus is by means of two pre-fitted brass rods giving slop free attachment. The wings are beautifully covered in multi coloured clear film as tight as the skin on Jordan’s ARTF (Always Ready To Fondle) breasts. |
|
The extreme tips are
swept back (I’m not talking about Jordan now) giving the wings a very
pretty but slightly aggressive plan form (or maybe I am). Fuselage – A lovely long, slim and smooth affair like Naomi Campbell’s ARTF (Almost Reach The Froat) legs. |

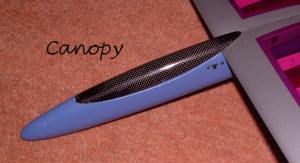

Of Carbon/ Kevlar make-up it is very light and strong. It is pre-drilled and pre-threaded for wing location and attachment and has the snakes pre fitted. The ‘V’ tailplane seat is pre formed for very accurate location. It is natural finish and really needs a lick of paint to do the rest of the model justice. The canopy is pre-formed in sexy looking carbon weave, but the fitting is left to you. I used a short length of piano wire at the rear and a very short screw (glad of anything these days) at the front. |

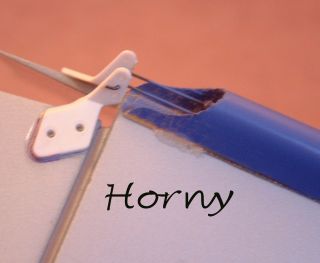

Tail plane – This is the Almost part of ARTF. Each half is complete and made of something akin to depron with a stiff steel coloured covering applied which also acts as the hinge for the rudders elevators elevons ruddervators flappy bits. The planform matches the wingtips; nice. I fitted a pair of mini plastic ‘v’ tail horns available from W.L.M. with epoxy. The two halves were then epoxied together and into the groove on the fus. I pre fitted the piano wire push rods into the horns with ‘z’ bends and slid them down the snakes before gluing the tail in place ensuring full unhindered movement. |

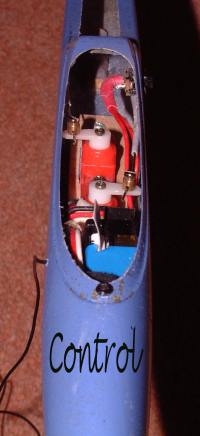

Control – I used a couple of those micro red union jobbies pre-fitted in a light ply tray, epoxied into the fus. Adjustment is via a threaded stand off that has a cross hole for the piano wire that in turn is clamped by a tiny grub screw giving easy and positive positioning. A Jeti micro receiver was an easy fit in the fus to complete the control chain. The battery used was also obtained from W.L.M. and was a 270mA four cell pack in diamond configuration and was a snug fit up the nose. Fortunately, it was also a perfect fit in the fus. With this set up, there was no need for any extra weight to give the correct C of G. Test Flight – |
Conclusion
– The quality of this ARTF (A Right Triffic Flier) knocks spots off anything I could build. If you like HLG, this is a superb model but, at £95, not particularly cheap. Instructions are non-existent, so a raw novice would need help with the small amount of assembly. As an addition, an electric fus and tailplane can be purchased separately to double your options (close to 60 quid though). |
The poetic bit –
|
A good few months have passed since I wrote this and it still gives me great pleasure. I am surprised there are not more in the club (Brian Boucher has the electric version). It is a pleasure to fly in a light breeze, but lacks penetration when it picks up. If you see me on the slope with it, feel free to ask for a test flight. Better still, go buy one, you will not be disappointed. http://www.westlondonmodels.com Brian Carr |
